AirMotion Big Smart MPT™ HVLS fans

EFFICIENT, ECONOMICAL, EASY. POWERFUL. IT'S THAT SIMPLE.

> Available in 12ft, 16ft, 20ft, and 24ft dia

The most affordable and effective large diameter HVLS fan on market. Intelligently designed with our Massive Performance Technology (MPT™), Smart MPT HVLS fans move and mix two to three times more air (up to 710,000 CFM) than other HVLS fans; built for facilities that need a lot of air movement, but not many additional features.

We have fitted the Smart MPT line with our Multimode Smart Control - a low voltage, easy to use, multifunctional Smart Controller that provides you with manual to fully automatic fan control with on-board smart electronics and temperature sensors. Though Simple it is still pretty darn Smart.



We have made great efforts to engineer the blades and hub of our Smart MPT™ Fans. Unlike other HVLS fans that use extruded aluminum blades designed to go in one direction (basically sail plane wing/truck spoiler design that has a different purpose than fan performance) our blades are symmetrical, and aerodynamically designed to blow air equally effectively up - when running in reverse, or down - when running in forward. In most cases AirMotion Big Smart Fans™ are three times or more effective at moving air upwards than other HVLS fans - something we believe is essential for optimal heat-destratification and air mixing.

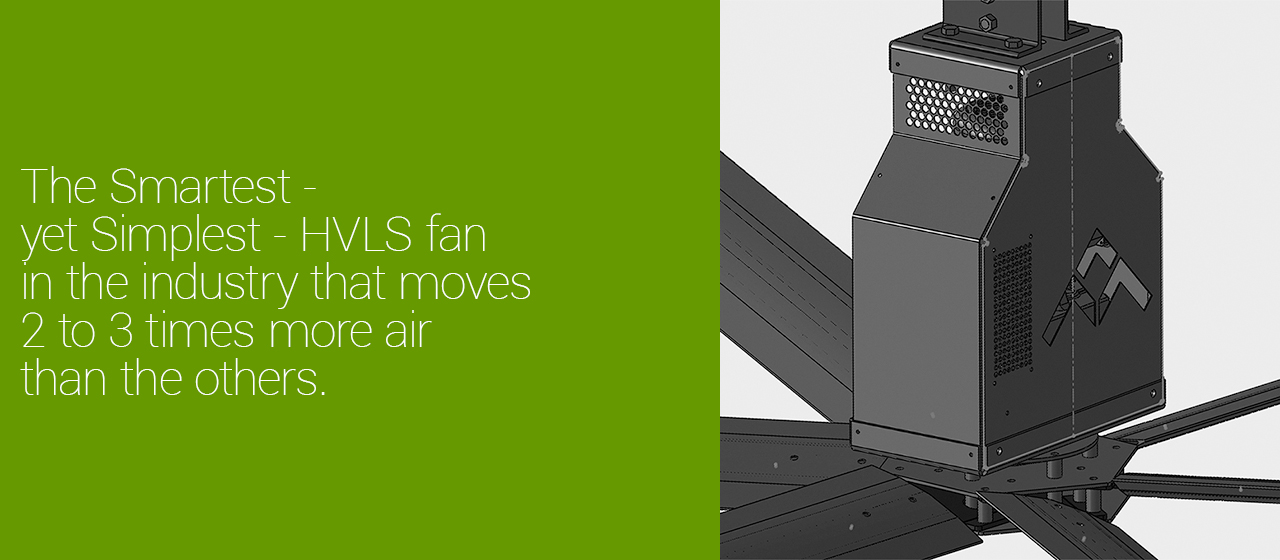

image-for-AirMotion-Smart-MPT-HVLS-fans

KEY FEATURES

> HIGHEST IN CLASS CFM
> ENERGY EFFICIENT HIGH PERFORMANCE COMPACT MOTOR
> MORE EFFECTIVE AIR MOVEMENT AND POWER AT SLOWER SPEEDS
> SYMMETRICAL AND AERODYNAMIC BLADES FOR EQUALLY EFFECTIVE UP OR DOWN AIR MOVEMENT
> LOW TURBULENCE AIR MOVEMENT
> SLOW START CAPABILITY WITH VARIABLE SPEED
> LOW COST VERSATILE INSTALLATION
> LIGHTWEIGHT AND DURABLE


KEY SPECIFICATIONS

> FAN SPEED - UP TO 50 RPM (FOR 24 FT FAN)
> BLADE PITCH - OPTIMIZED FOR POWER AND PERFORMANCE
> NO OF FAN BLADES - 6
> FAN BLADE MATERIAL - EXTRUDED ALUMINUM
> CFM - UP TO 710,000
> APPROXIMATE WEIGHT - 280 LBS.
> FAN MOTOR - COMPACT 3 HP TEFC HIGH EFFICIENCY - ADAPTABLE TO ANY POWER SOURCE
> MAX OPERATING WATTS - 2,250


FULL SPECIFICATIONS - DOWNLOAD PDF 1.5MB
